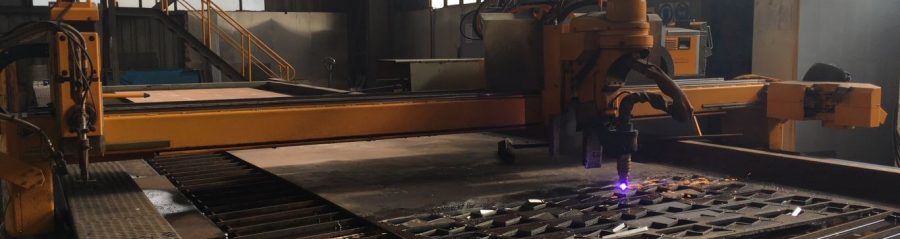

CNC 3D plasma and CNC oxy-fuel cutting of conductive materials

Cutting at an angle using a 3D rotator, perpendicular cutting, and marking of parts using equipment from MicroStep Group.
Cutting is performed above an adjustable water level to reduce heat impact on the workpiece.
Maximum sheet size according to the water table: 2,500 × 12,000 mm.
3D plasma contour cutting with a maximum angle of 50°, depending on material thickness and hole diameter.
Cut quality and precision fully meet customer requirements.
Our specialisation includes the production of screens for clay extrusion.

Operational and Technical Parameters – CNC Plasma Kjellberg 360i

Type:	PLS 12001 20PrG
Year of manufacture:	2009
Power:	3kW
Materials:	all structural steels, stainless steel, aluminium, and especially wear-resistant steels
Sheet thickness:	1-70mm
Maximum piercing thickness:	50mm
CNC oxy-fuel torch:	oxy-fuel cutting of structural steel up to 150 mm thickness
